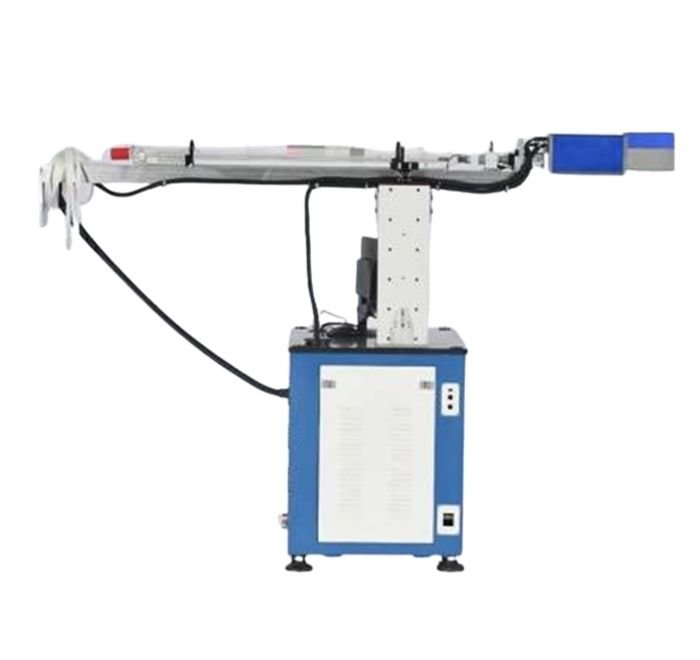

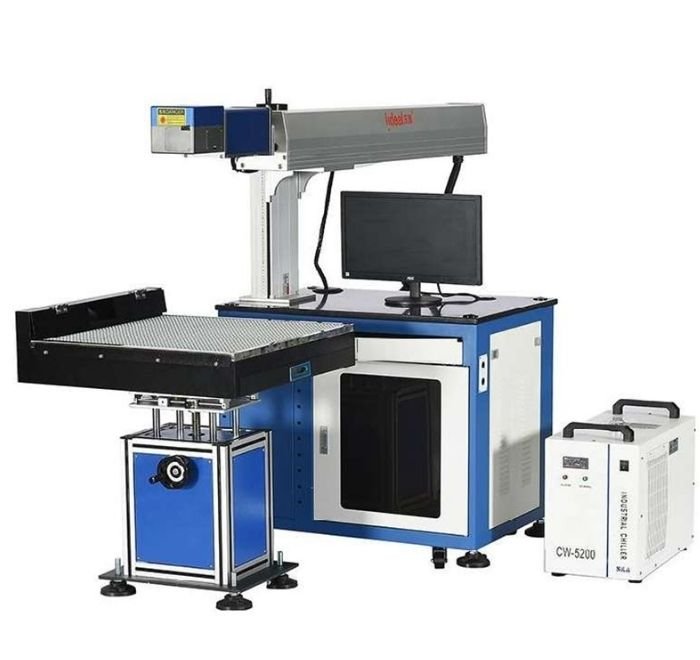

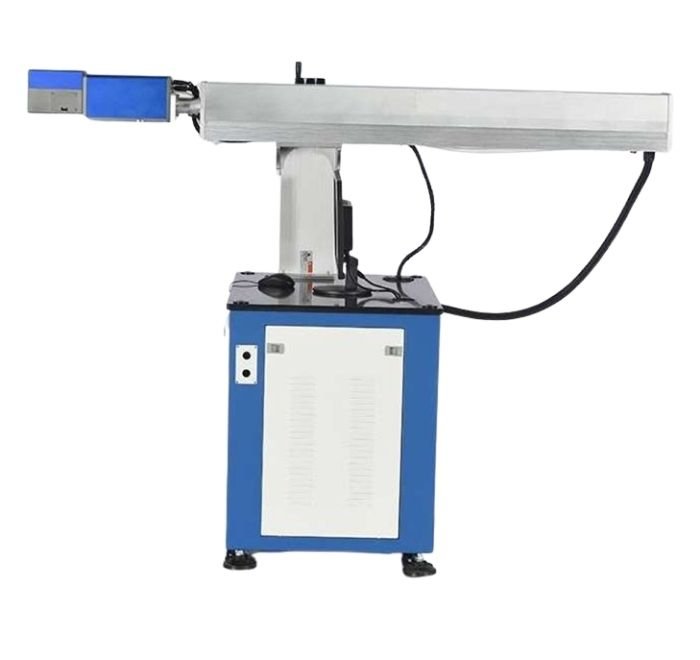

ATS Co2 Laser Marking Machine
ATS Co2 Laser Marking Machine
ATS Co2 Laser Marking Machine
ATS Co2 Laser Marking Machine

ATS Co2 Laser Marking Machine

  • ATS CO2 laser marking machines have a very good cost performance.
  • The glass tube laser, lifetime is up to 10,000 hours.
  • Integrated all-in design, fully enclosed and free maintenance optical system.
  • Photoelectric and mechanical parts are highly integrated. Working area is 300×300~600x600mm adjustable, 800x800mm can custom made if requested.
  • The linear marking speed is 0~400 meters/minute.
  • The circuit and parts are professionally designed and optimized, there is no electronic interference from high voltage laser to galvanometer scanner and marking card.
Marking Depth 2mm
Brand ATS
Marking Area 300x300mm, 600x600mm, 800x800mm optional
Laser Power 100W(W2), 120W(W4), 150W(W6)
Minimum Line Width 0.05mm
Country of Origin Made in India
Laser Wavelength 10640nm
Laser Frequency 20KHz
Repeatability Accuracy +-0.05mm
Marking Speed Max. 400m/minute
Input Power 220VAC, 50/60HZ
Total Power 2000W
Product Size and Weight 900x1700x1400mm/220kg
Packing Size and Weight 210x110x95cm/2.2CBM/320kg
Stuffing Quantity 12 sets/20’FCL, 24 sets/40’HC
Category:

Configuration:

  • Laser Source: CO2 Glass Tube-Reci W2,W4, W6 optional
  • Laser Power Supply: Jinan Zhenyu
  • Switching Power Supply: Shanghai Hengfu
  • Galvonometer Scanner: Custom Made High Speed Scanning System
  • Red Dot Positioning Laser: Φ1mm Red dot laser–Φ12x36mm Marking Control System: Ezcad
  • Control Cabinet: Aluminum Alloy Lifting Table, Marble Table Top Worktable: Lifting Worktable + Dual Airduct + Blade and Honeycomb Workbench
  • Computer: Industrial Computer
  • Water Cooler: S&A CW5200 Chiller
  • Exhaust Fan: Jiejin Industrial Fan 750W

Machine Accessories

Dynamic Galvanometer Scanner

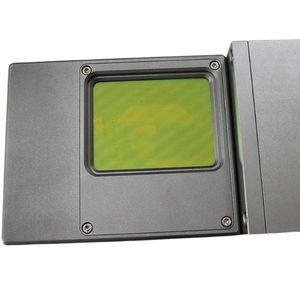

Windows Lens

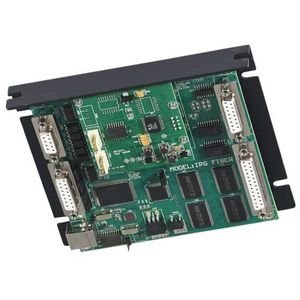

Marking Laser Motion controller card

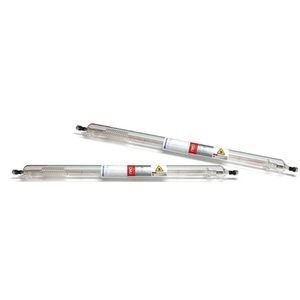

Reci Laser Tube

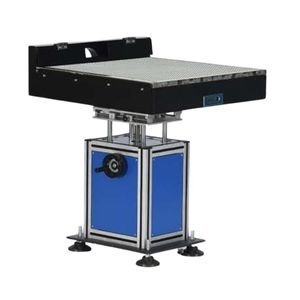

Lifting Worktable+Dual Airduct+Blade and Honeycomb Workbench

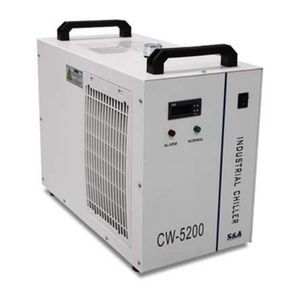

S&A Water Chiller

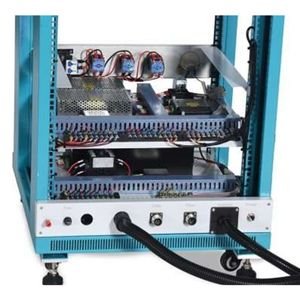

Control Cabinet
