| Cutting Thickness | Max. 10mm (depends on different materials ) |
| Brand | ATS |
| Country of Origin | Made in India |
| Laser Tube | 40W(Standard), 60W(with tube extender) |
| Laser Tube Type | CO2 sealed glass tube |
| Z Axis Height | 120mm adjustable |
| Input Voltage | 220V AC 50Hz/110V AC 60Hz |
| Rated Power | Max. 1300W |
| Operating Modes | Optimized raster, vector and combined mode mode |
| Resolution | 1000DPI |
| Max Engraving Speed | 1200mm/sec |
| Max Cutting Speed | 680mm/sec |
| Acceleration Speed | 5G |
| Laser Optical Control | 100% Set by software |
| Minimum Engraving Size | Chinese Character 2.0mm*2.0mm, English Letter 1.0mm*1.0mm |
| Locating Precision | <=0.1 |
| Working Temperature | 0-45 Deg C |
| Environmental Humidity | 5-95% |
| Buffer Memory | 128Mb |
| Model Number | ATS_MIRA5 |
| Working Area | 500×300 mm |
| Machine Dimension | 900x710x430 mm |
| Machine Net Weight | 105 Kg |
| Machine Packing Weight | 125 Kg |

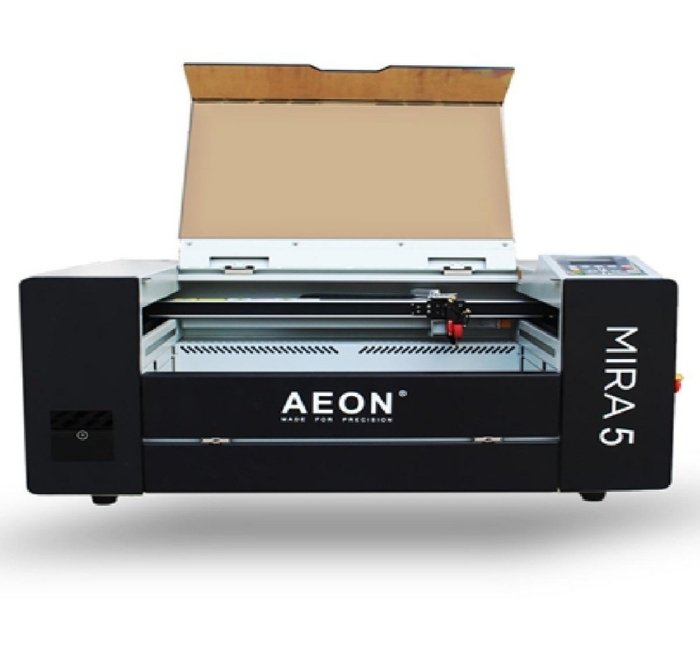

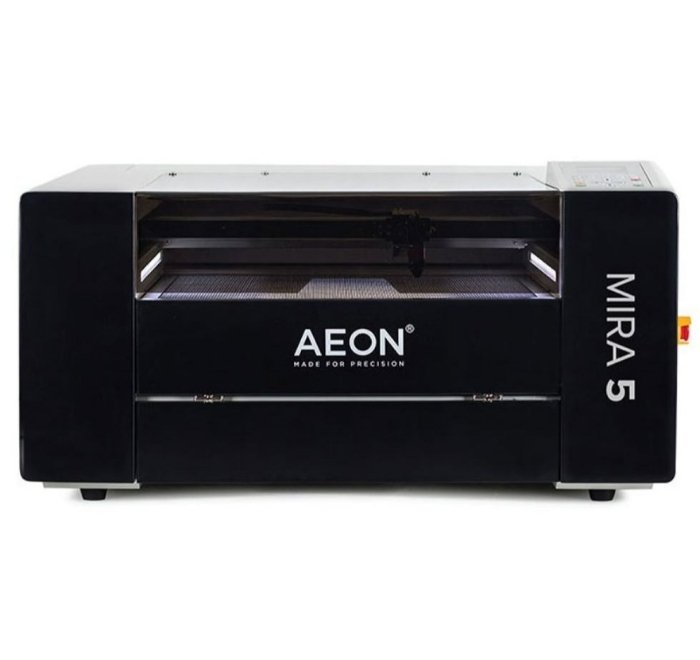

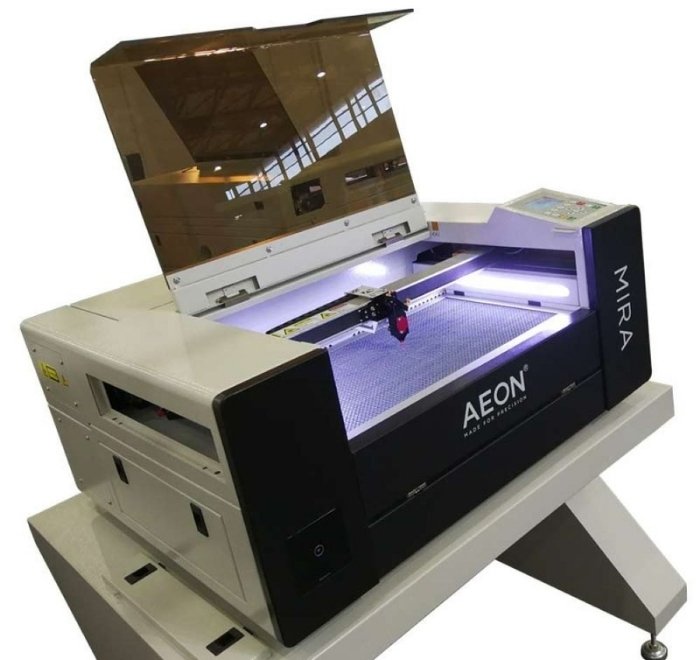

ATS MIRA5 Desktop High Speed Engraving and Cutting Machine
AEON MIRA5 40W/60W Desktop Laser Engraver Cutter is a hobby grade desktop laser engraving machine. The working area is 500*300mm, with water cooler, exhaust fan and air pump built inside of the machine which is very compact and elegant. It is ideal for those who got limited space and want a best hobby grade desktop laser engraving machine in his/her room.
