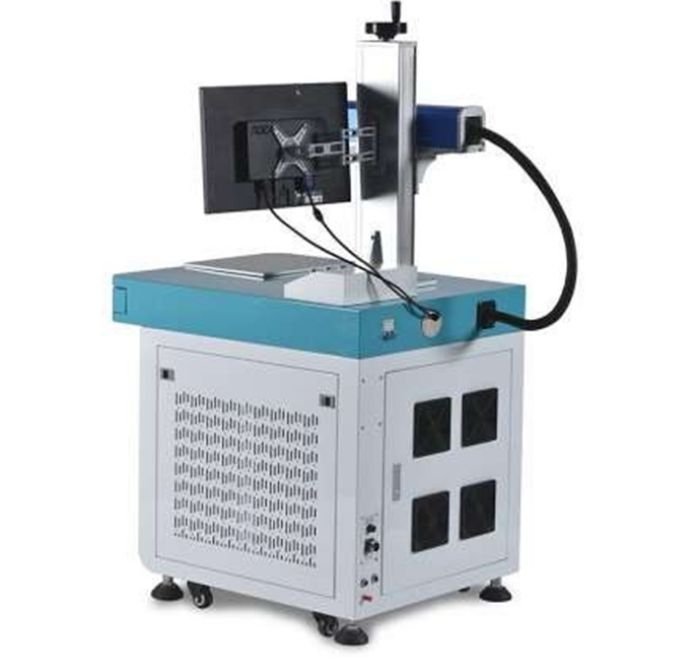

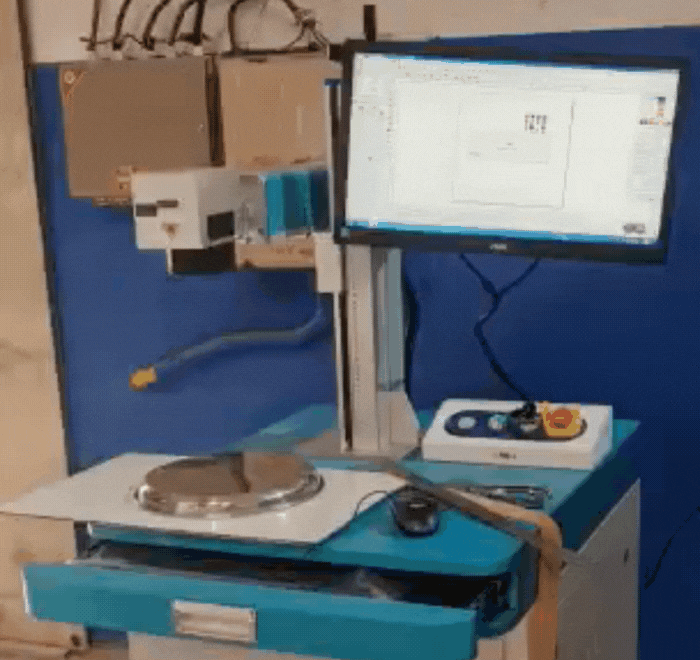

ATS 3030 Fiber Laser Metal Marking Machine

Marking Depth <2mm
Minimum Line Width 0.01mm
Marking Area  300x300mm
Pulse Width 20/30/50W: 100ns(90~110ns); 100W: 110ns(90~130ns)
Brand ATS
Max Power Consumption 1000W
Country of Origin Made in India
Laser Output Power <20W(30W, 50W, 100W)
Laser Wavelength 1064nm
Beam Quality M2=1.3(1.1~1.6)
Pulse Repeat Frequency 20W: 30kHz~60kHz; 30W: 30kHz~60kHz; 50W: 50kHz~100kHz; 100W: 20kHz~200kHz
Minimum Character Size 0.05mm
Repeatability Accuracy +-0.01mm
Marking Speed Max. 400meter/minute
Product Size and Weight 800x700x1400mm, 80kgs
Packing Size and Weight 900x720x1100mm, 150kgs
Category:

ATS 3030 – 20 Watt / 30 Watt / 50 Watt / 100 Watt

Technical Configuration & Parameters

1. Galvanometer: Use high speed flying marking
2. Field Lens: High quality uniform facula distribution within work area (Nanjing Wavelength)
3. Lifting axis linear guide rail, ball screw, 180° adjustable electrical up and down
4. Lifting Arm: 0-500 mm (Electrical Adjustable)
5. Switching Mode Power Supply: High efficiency, stable and reliable
6. Marking Control System: Real time preview, precisely control, easy to use
7. Safety Socket: Aerial plug, easy and quick connection, low impedance, precise signal output
8. Workbench: Aluminum alloy workbench, hole spacing 25/50mm, with right angle positioning bar, easy to adjust marking position
9. Control Cabinet: ATS Laser Design with Aluminum alloy lifting table
10. Laser Source: JPT 20 Watts
11. Galvanometer Scanner: High Speed System Digital Scanner
12. Switching Power Supply: Shanghai Hengfu
13. Red dot positioning laser: Φ1mm Red dot laser – Φ12x36mm
14. Marking Control System: JCZ Ezcad
15. Computer: Industrial Computer
16. Cooling System: Air Cooling (24°C～28°C)
17. Working Power Supply: 220V AC/50Hz
18. Patterning/Marking Area ( Job size ): ≥ 200mm x 200mm
19. Laser Source Type: Fiber Laser Source
20. Laser Output Power: ≤20 Watts
21. Laser Wavelength: 1064nm
22. Pulse Width: 30 Watts: 100ns(90～110ns)
23. Marking Depth ( Max.): ≥ 2mm
24. Minimum Line Width: ≤ 0.01mm (10µm)
25. Minimum Character Size: ≤ 0.05mm
26. Repeatability/ Accuracy: ±0.01mm
27. Electrode Patterning / Marking Speed range : 0-400 meter/minute
28. Minimum etched line width (kerf width): 100µm～150µm
29. Minimum gap between two kerf : 200 µm
30. Product Size and Weight: 800x700x1400mm, 80kgs
31. Packing Size and Weight: 900x720x1100mm, 150kgs
32. Laser Power Source Size & Weight: 300*450*650mm, 20kg

Applicable Materials:

  • All metals,alloy, oxide, electroplate, metal coating film, ABS, Epoxy, printing ink and engineering plastic, etc.
