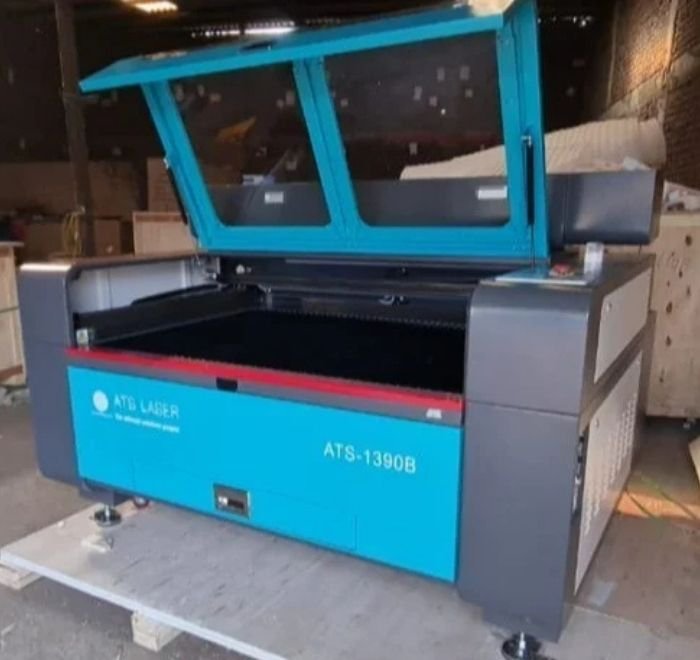

ATS 1390 DH Double Head Co2 Laser Machine

ATS 1390 DH Double Head Co2 Laser Machine

High speed motion module, exclusive patent design technology. Light weight, high speed, dustproof, anti rust, beautiful appearance, easy maintenance. High speed smoothly cutting without waviness. The optical path and motion system are integrated and optimized. The optical path is stable and simple and convenient to be adjusted.

Laser Type CO2
Laser Power Max. 80W CO2 sealed glass laser tube
Engraving Speed Max. 1700 mm/sec
Cutting Speed Max. 600 mm/sec
Working Area Max. 600mm x 400mm
Brand ATS
Country of Origin Made in India
Model Number ATS3030/ATS6040
Accessories Blower & Compressor
Category:

Technical Specifications:

  • Working area : 300X300 / 600mm x 400mm
  • Ruida RDC 6445G with High Memory Latest High Speed controller with color Display & Software
  • 40W/80W CO2 sealed glass laser tube.
  • Laser power supply 40W/80W with thermostat
  • US lenses & Silver Metal Mirror
  • Water cooling system with latest Technology
  • High Speed Stepper Motor lead shine
  • DSP offline control with USB Interface
  • High speed Synchronization
  • Linear Transmission Mechanism
  • S&A CW 3000: Industrial chiller
  • Special SS Profile used for X & Y Motion
  • Special Sell Doors for Mechanism tuning
  • Engraving speed 0-1700mm/sec
  • Cutting speed 0-600mm/sec
