ATS 1390 A Single Head Co2 Laser Cutting & Engraving Machine
ATS 1390 A Single Head Co2 Laser Cutting & Engraving Machine

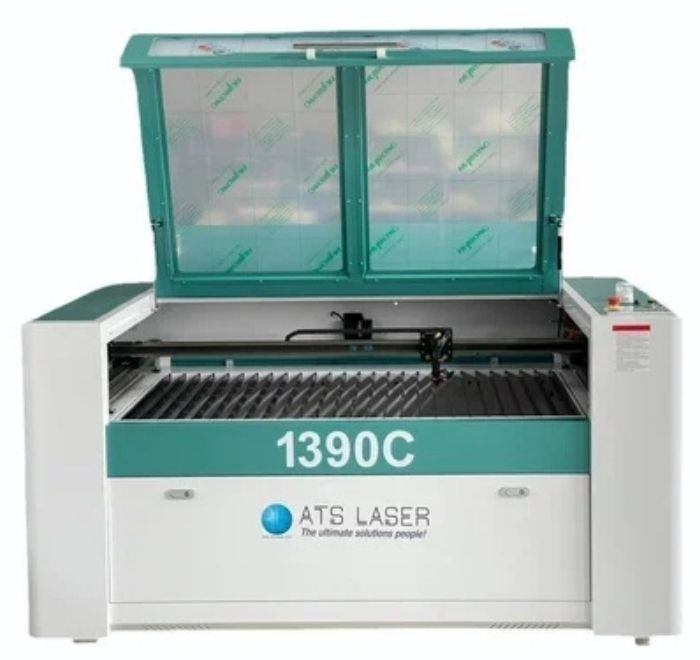

ATS 1390 C Single Head Co2 Laser Cutting & Engraving Machine

This machine has been introduced with special features of double head conversion. High speed motion module, exclusive patent design technology. High speed, dustproof, anti rust, beautiful appearance, easy maintenance. High speed smoothly cutting without waviness. The optical path and motion system are integrated and optimized. The optical path is stable and simple and convenient to be adjusted. Used special aluminum blade workbench or honeycomb workbench, suitable for all types of materials cutting, avoid blackened by smoke.

Usage/Application Industrial
Brand ATS
Country of Origin Made in India
Model Number ATS 1390C
Working Area 1300 x 900 mm
Laser Power Supply 100W with thermostat
Engraving Speed Max. 1200 mm/sec
Cutting Speed Max. 600 mm/sec
Accessories Blower & Compressor
Head Type Single Head



Category:

Technical Specifications:

  • Ruida RDC 6445G with High Memory Latest High Speed controller.
  • Big screen color display with extra additional features
  • Software inclusive of special addition for photo engraving
  • 100W_RECI W4 CO2 sealed glass laser tube.
  • US lenses & Imported Silver Metal Mirror
  • Water cooling system with latest Technology
  • High Speed Stepper Motor lead shine
  • DSP offline control with USB & Lan Interface
  • High speed Synchronization Linear Transmission Mechanism
  • S & A CW 5200: Industrial chiller with refrigeration system
  • Special U-Shape SS Profile used for X & Y Motion
  • Special Shell Doors for Mechanism tuning with sensors
  • Engraving speed 0-1200mm/sec
  • Cutting speed 0-600mm/sec
  • Maintenance tool-box.
  • Separate tray for using honeycomb & knife table with extra knife for support
