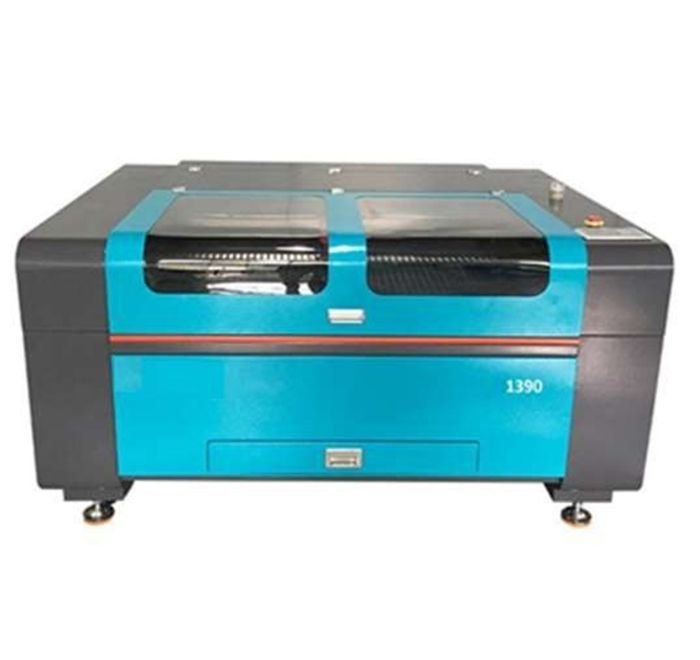

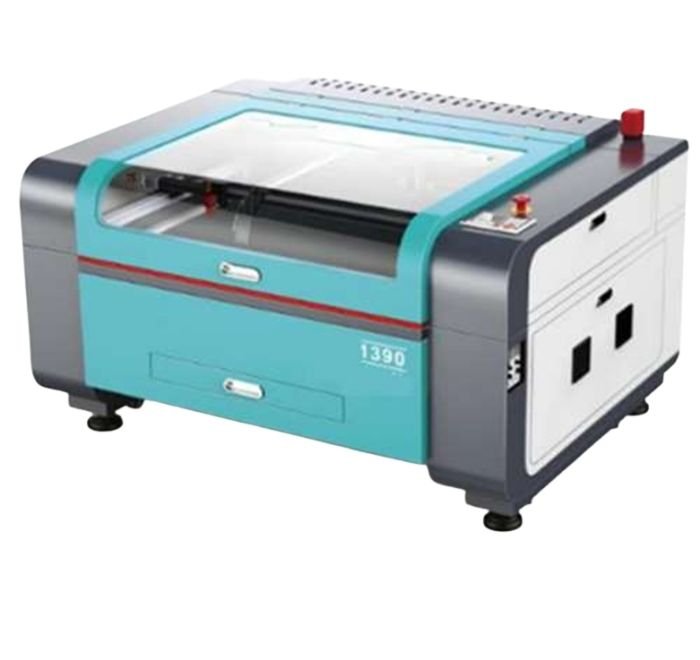

ATS 1390 BH Double Head Co2 Laser Cutting and Engraving Machine

One of the benefits of CO2 laser engraving machines is their precision and accuracy. The laser beam is capable of producing intricate designs with high levels of detail, resulting in clean and crisp lines. This precision allows for consistency in production, reducing the likelihood of errors and minimizing material waste. CO2 laser engraving machines also offer a non-contact engraving method, which eliminates the need for physical contact with the material being engraved, reducing the risk of damage or distortion. Another advantage of CO2 laser engraving machines is their versatility. They can be used to engrave and cut a variety of materials, including wood, glass, acrylic, leather, and metal. This makes them ideal for a wide range of applications, from creating personalized gifts to industrial manufacturing. Finally, many CO2 laser engraving machines are user-friendly and come with intuitive software, making it easy to design and execute projects.

High speed motion module, exclusive patent design technology. Light weight, high speed, dustproof, anti rust, beautiful appearance, easy maintenance. High speed smoothly cutting without waviness. The optical path and motion system are integrated and optimized. The optical path is stable and simple and convenient to be adjusted.

Laser Power 100 W
Type of Engraving Machine Laser Engraving Machine
Engraving Speed 1000 mm/s
Engraving area 50” x 35”
Cutting Speed 635 mm/s
Materials compatibility Acrylic
Model Name/Number ATS 1390 BH
Brand ATS
Frequency 50 Hz
Voltage 220 V
Country of Origin Made in India
Accessories Blower & Compressor
Head Type Double Head

Technical Specifications:

  • Ruida RDC 6445G with high Memory Latest High Speed controller with color Display & Software
  • Double head Shift controlled manually from Motion controller stepper motor feature is provided.
  • 100W sealed glass laser tube- 2 pcs
  • US lenses & Silver Metal Mirror
  • Water cooling system with latest Technology
  • High Speed Stepper Motor lead shine
  • DSP offline control with USB Interface
  • High speed Synchronization Linear Transmission Mechanism
  • Dual option Knife & Honey Comb
  • CW 5200: Industrial chiller with refrigeration system & high capacity DC water pump-1pc (Specially designed for Double Head)
  • Special SS Profile used for X & Y Motion
  • Engraving speed 0-1200mm/sec
  • Cutting speed 0-600mm/sec
