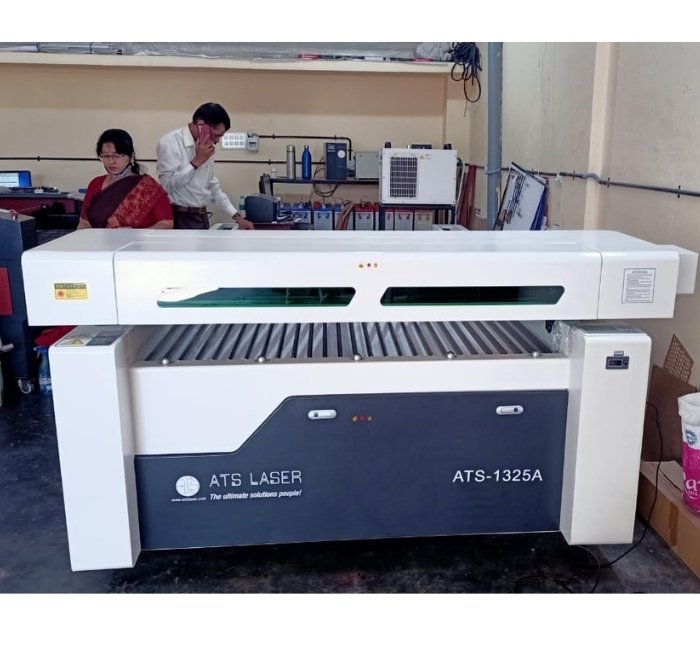

ATS 1325A Laser Cutting and Engraving Machine Large Format
ATS 1325A High Speed CO2 Laser Cutting and Engraving Machine - Image 2

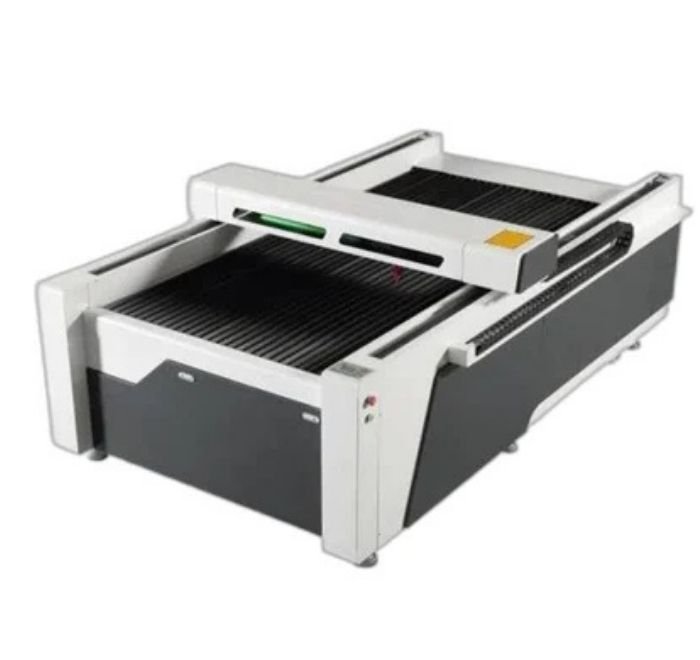

ATS 1325A High Speed CO2 Laser Cutting and Engraving Machine

High speed motion module, exclusive patent design technology. Light weight, high speed, dustproof, anti rust, beautiful appearance, easy maintenance. High speed smoothly cutting without waviness. The optical path and motion system are integrated and optimized. The optical path is stable and simple and convenient to be adjusted.

Category:

Technical Specifications

  • Working Area: 1300mm x 2500mm (8’x4’)
  • Ruida RD 6445G controller with Huge Color Display and Software
  • 130watt CO2 sealed glass laser tube
  • Laser power supply 130w with thermostat
  • Imported lenses & mirror
  • Water cooling system
  • Stepper Motor and drive lead shine brand
  • DSP offline control with USB and LAN Interface
  • High Speed X axis with Linear Synchronization transmission mechanism
  • Cutting Knife in X position
  • HIWIN square linear with Belt Transmission
  • S&A CW 5200: Industrial chiller with refrigeration system
  • Engraving speed 0-75000mm/min
  • Cutting speed 0-40000mm/min
  • SANS plug
  • Key switch
  • Red pointer
  • Accessories: Blower- 2Nos & Compressor
  • Total tool kits for machine servicing
